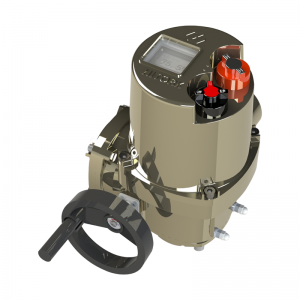

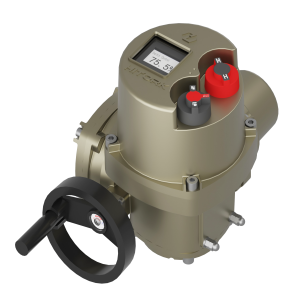

HITORK HKP.2

A part-turn electric actuator, also referred to as a quarter-turn electric valve actuator or 1/4 turn electric actuator, typically provides an output of 90° and a stroke not exceeding 360°. It is extensively employed for driving valves with Quarter turn strokes, including ball valves, butterfly valves, and dampers. In scenarios where valve torque is minimal or space is constrained, opting for the lightweight Quarter turn electric actuator is advisable. Conversely, when dealing with significant valve torque, the multi-turn electric actuator with a worm gear reducer is a suitable choice.

Inquiry now

Details

Product Introduction

Lightweight structural design ensures compact and easy installation, specifically engineered for non-explosive environments.

Mechanical torque detection structure, capable of accurately detecting over-torque in both the opening and closing directions. The over-torque signal is fed back to the control board by triggering a micro switch. The over-torque protection value can be adjusted by opening the housing and fine-tuning the trigger cam.

Superior Environmental Resilience

The system features a corrosion-resistant coated housing with IP68 protection rating, and the extreme conditions is -60°C. The split-type architecture specifically addresses challenging high-vibration applications while maintaining optimal performance.

Safety Operation

Comprehensive self-diagnosis and alarm protection functions covering various actuator abnormal conditions, including over-torque in open/close directions, motor overheating, reverse operation, power phase loss, motor stall, remote signal loss, valve position loss, etc., effectively preventing damage to actuators or valves caused by abnormal conditions.

Expandable support for multiple bus protocols (PROFIBUS, MODBUS, FF, DeviceNet, HART) and 4G/5G IoT applications.

Technical Parameters

Model	Rated TorqueNm	90° Travel TimeS	Rated PowerW	Rated Current A@3ph AC380V 50Hz	Maximum Current A@3ph AC380V 50Hz	Maximum Shaft Diametermm	Flange TypeISO5211	Weightkg
HKP05.2	50	15	45	0.16	0.42	19	F05	9
HKP10.2	100		60	0.18	0.45		F05	9
HKP15.2	150		75	0.22	0.6		F05/F07	9
HKP20.2	200		90	0.26	0.68	28	F07	13
HKP30.2	300		120	0.32	0.88		F07	13
HKP40.2	400		150	0.37	1.07		F07/F10	14
HKP60.2	600		180	0.72	1.68	38	F10	22
HKP80.2	800		200	0.81	2.2		F10/F12	22
HKP120.2	1200		250	1	2.8		F10/F12	22
HKP150.2	1500		370	1.6	4.5		F14	24
HKP200.2	2000		370	1.6	4.5		F14	24
HKP300.2	3000	30	370	1.6	4.5	60	F16	32
HKP400.2	4000		550	2.5	7.2		F16	37
HKP500.2	5000		550	2.5	7.2		F16	37
