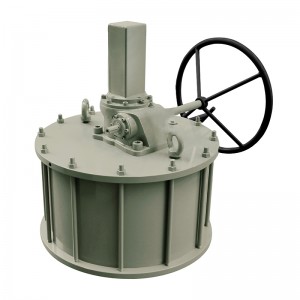

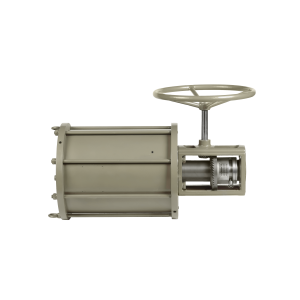

HPL Series

High Thrust Output

The HPL series pneumatic actuator employs a dual-piston structure design to deliver greater thrust, ensuring smooth valve operation without jamming.

Wear and Corrosion Resistance

The cylinder is constructed from cold-drawn hydraulic tubing, honed and hard chrome-plated to significantly enhance the actuator's wear resistance and corrosion protection.

Excellent Protection Performance

The HPL series pneumatic actuator meets IP67 protection standard, with cylinder seals using imported NBR O-rings to prevent ingress of external moisture and contaminating dust, ensuring stable and reliable performance with extended service life.

Universal Connection Standard

The mounting dimensions for valve connections comply with ISO 5211 requirements, giving the HPL series actuators excellent interchangeability.

Versatile Control Solutions

Hankun possesses extensive experience in pneumatic control and can custom-design pneumatic systems according to customers’ process control requirements.

Travel Range: Single-acting: 0 ~ 200mm, Double-acting: 0 ~ 2000mm

Thrust Range: Single-acting: 1 ~330 kN, Double-acting: 3 ~ 800kN

Operation Pressure: 3 ~ 7 bar

Ambient Temperature: High-temperature range: -20 ~ +120°C, Standard temperature range: -20 ~ +80°C, Low-temperature range: -40 ~ +80°C, Ultra low-temperature range: -60 ~ +40°C

Note：For the thrust parameters table, please refer to the 《HITORK Pneumatic Actuators Brochure(V4.0.3—202605--HK)》
