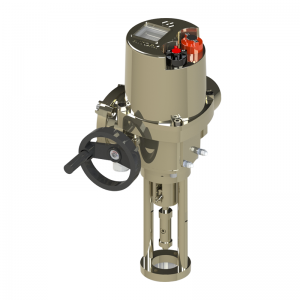

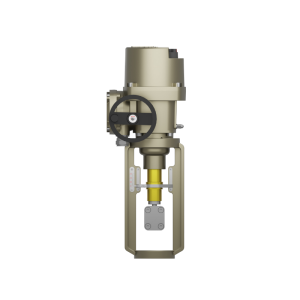

HITORK HKL.2
Product Introduction
Lightweight structural design ensures compact and easy installation.
Mechanical torque detection structure, capable of accurately detecting over-torque in both the opening and closing directions. The over-torque signal is fed back to the control board by triggering a micro switch. The over-torque protection value can be adjusted by opening the housing and fine-tuning the trigger cam.
Superior Environmental Resilience
The system features a corrosion-resistant coated housing with IP68 protection rating, and the extreme conditions is -60°C. The split-type architecture specifically addresses challenging high-vibration applications while maintaining optimal performance.
Safety Operation
Comprehensive self-diagnosis and alarm protection functions covering various actuator abnormal conditions, including over-torque in open/close directions, motor overheating, reverse operation, power phase loss, motor stall, remote signal loss, valve position loss, etc., effectively preventing damage to actuators or valves caused by abnormal conditions.
Expandable support for multiple bus protocols (PROFIBUS, MODBUS, FF, DeviceNet, HART) and 4G/5G IoT applications.
Technical Parameters
| Model | ThrustN | Speedmm/S | Maximum Strokemm | Rated PowerW | Rated Current A@3ph AC380V 50Hz | Maximum Current A@3ph AC380V 50Hz | Weightkg |
| HKL30.2 | 3000 | 0.4/0.6 | 25 | 75 | 0.22 | 0.6 | 18 |
| HKL50.2 | 5000 | 0.4/0.6 | 25 | 75 | 0.22 | 0.6 | 18 |
| HKL80.2 | 8000 | 0.4/0.6 | 60 | 90 | 0.26 | 0.68 | 22 |
| HKL100.2 | 10000 | 0.4/0.6 | 60 | 90 | 0.26 | 0.68 | 22 |
| HKL130.2 | 13000 | 0.6 | 100 | 120 | 0.32 | 0.88 | 23 |
| HKL150.2 | 15000 | 0.6 | 100 | 120 | 0.32 | 0.88 | 23 |
NOTE：
Non-ISO standard connection dimensions can be customized upon request.
For linear applications requiring thrust above 15000N, the HKM series + linear unit solution is available.
