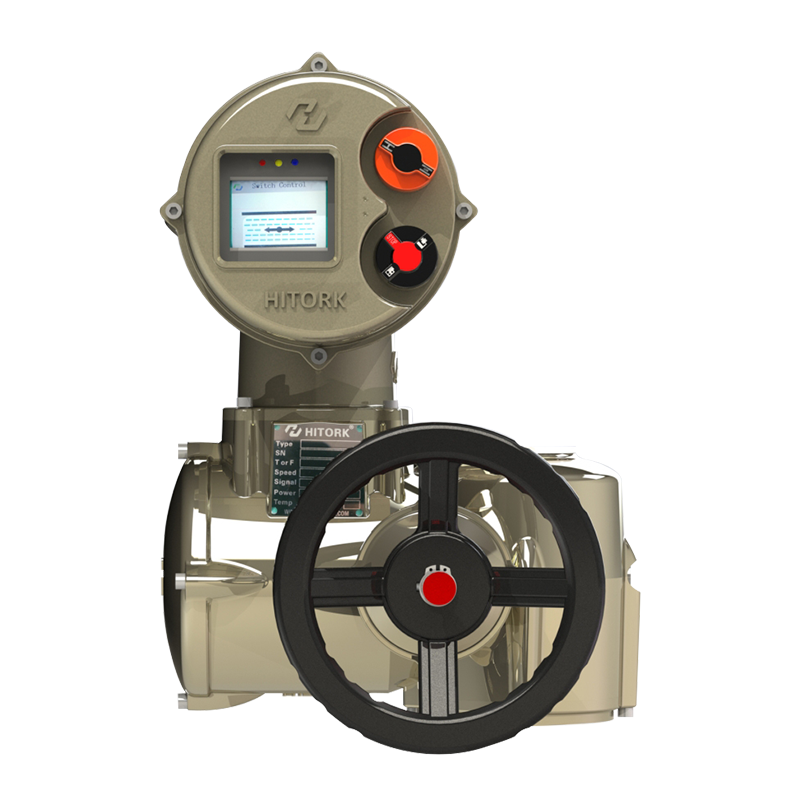

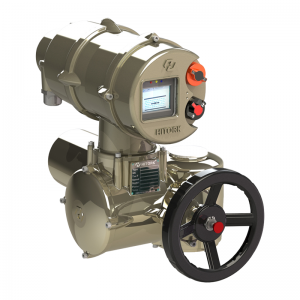

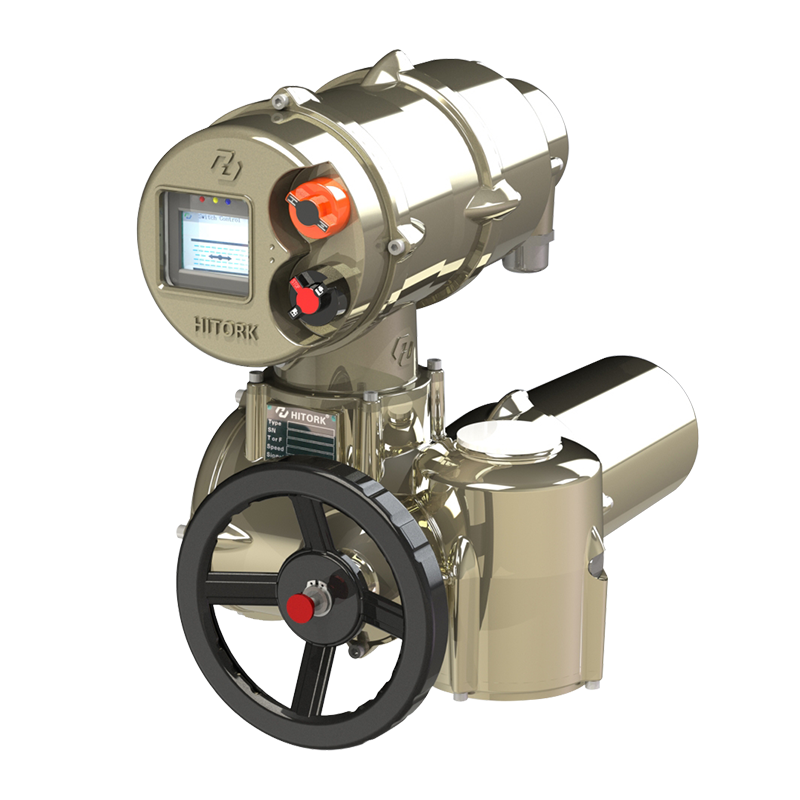

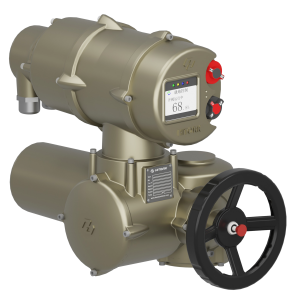

HITORK HKM.2

The HITORK2.0 IoT HKM.2 Multi Turn Electric Valve Actuator serves as a versatile solution for managing an array of valves and similar products. This includes but is not limited to gate valves, globe valves, and regulating valves. Widely applied in industries like power plants, petrochemicals, water treatment, shipping, papermaking, and more, this actuator system proves to be highly adaptable to various operational environments.

Inquiry now

Details

Product Introduction

Lightweight structural design ensures compact and easy installation, specifically engineered for non-explosive environments.

Integrated electronic torque detection utilizes real-time motor power parameter analysis to linearly match actuator torque characteristics, delivering high sensitivity, precision, and structural simplicity for enhanced reliability. This contactless system enables remote torque protection setting (adjustable 40%-120%) via handheld transmitter without housing disassembly.

Torque ≤200Nm support variable-frequency drive modules, enabling adjustable speed, soft start functionality, with 0.5% positioning accuracy.

Superior Environmental Adaptability

Optional anti-corrosion housing coating, IP68 protection rating, -60℃ ultra-low temperature operation, split-type installation suitable for high-temperature and high-vibration environments.

Safety Operation

Comprehensive self-diagnosis and alarm protection functions covering various actuator abnormal conditions, including over-torque in open/close directions, motor overheating, reverse operation, power phase loss, motor stall, remote signal loss, valve position loss, etc., effectively preventing damage to actuators or valves caused by abnormal conditions.

Expandable support for multiple bus protocols (PROFIBUS, MODBUS, FF, DeviceNet, HART) and 4G/5G IoT applications.

Technical Parameters

Model	Rated TorqueNM	Revolutions Per Minuterpm	Rated PowerkW	Rated Current A@3ph AC380V50Hz	Maximum Current A@3ph AC380V50Hz	Maximum Shaft Diametermm	Flange TypeISO5210	Weightkg
HKM03.2	30	32	0.12	0.6	1.7	28	F10	27
		64	0.25	1.4	3.2
		128	0.37	2.4	5.6
HKM05.2	50	32	0.25	1.4	3.2
		64	0.37	2.4	5.6
		128	0.55	2.8	7.6
HKM10.2	100	32	0.37	2.4	5.6
		64	0.55	2.8	7.6
		128	0.75	3.2	8.7
HKM20.2	200	32	0.55	2.8	7.6
HKM20.2	200	64	0.75	3.2	8.7
HKM30.2	300	32	0.75	3.2	8.7	36	F14	45
		64	1.5	6.8	17.1
		128	3	10	26.8
HKM45.2	450	32	1.1	4.3	11.8
HKM45.2	450	64	2.2	8.3	22.4
HKM60.2	600	32	1.5	6.8	17.1
HKM60.2	600	64	3	10	26.8
HKM80.2	800	32	2.2	8.3	22.4	60	F16	92
		64	4	13.3	35.4
		128	7.5	25.2	56.3
HKM100.2	1000	32	3	10	26.8
HKM100.2	1000	64	5.5	17.4	49.3
HKM120.2	1200	32	3	10	26.8
HKM120.2	1200	64	5.5	17.4	49.3
